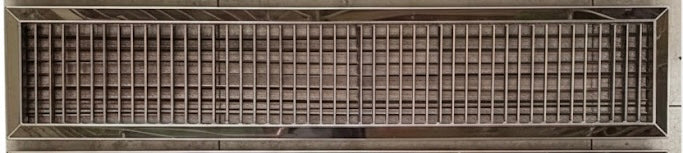

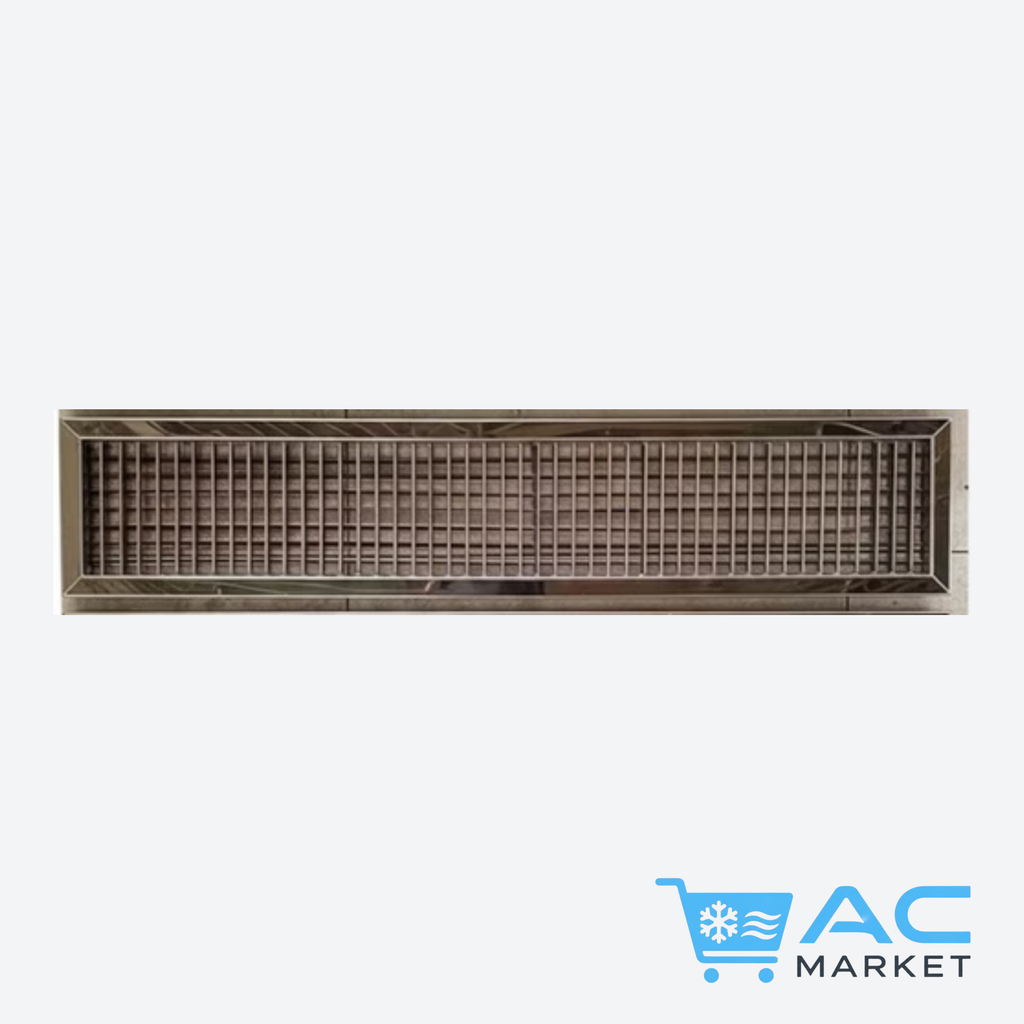

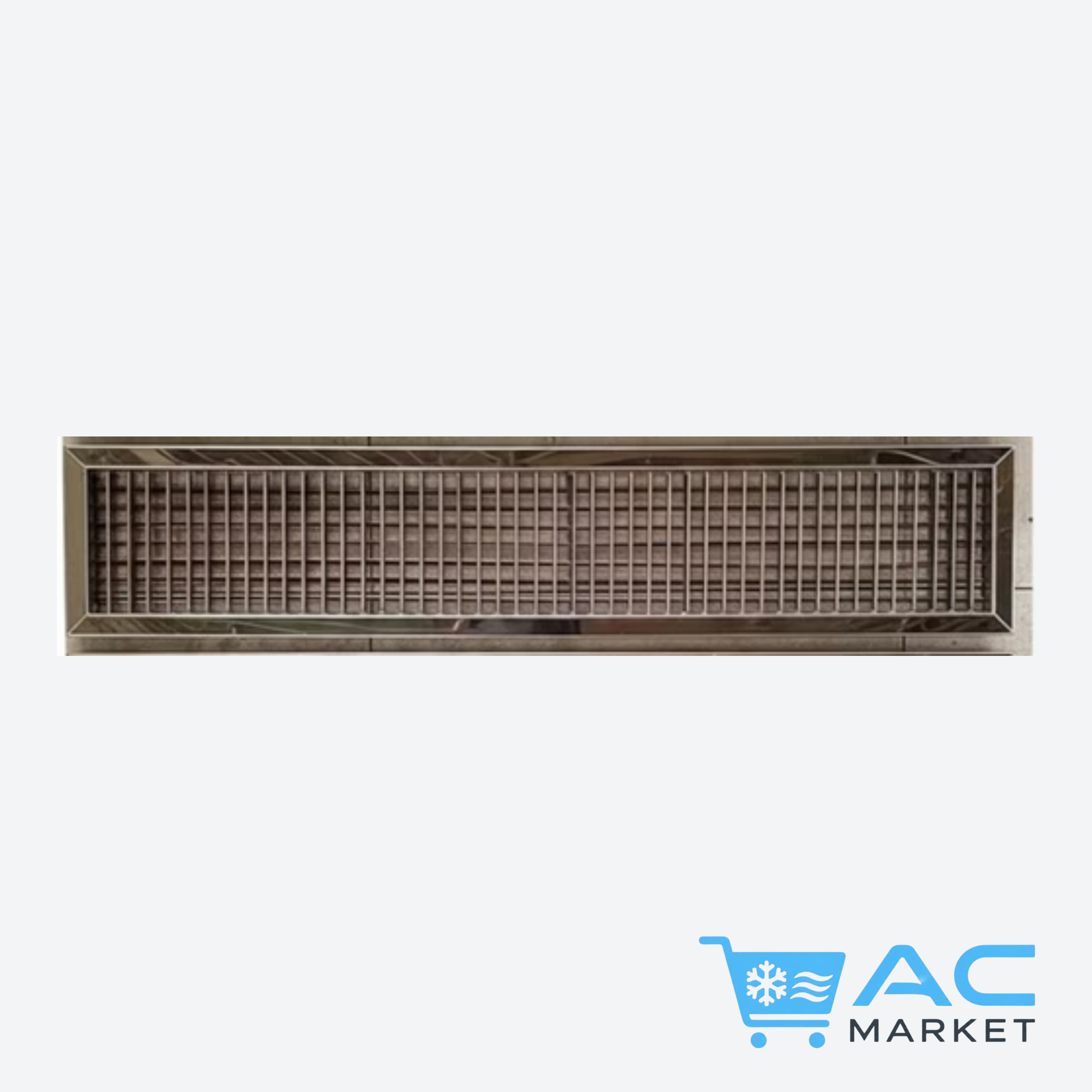

rectangular linear grilles

Product Overview:

General Description – Square Ceiling Diffuser

The stainless steel square ceiling diffuser is an advanced air distribution solution for HVAC systems.,

 It combines balanced airflow performance with a luxurious architectural appearance, making it an ideal choice for projects that require a high level

of quality and durability along with aesthetic appeal..

The diffuser's design is based on multiple stepped cones (Multi-Cone Design) that allow for gradual and balanced air discharge in four directions,

which helps improve air distribution within spaces.

The diffuser is manufactured from high-quality stainless steel, which offers excellent resistance to rust, humidity, and environmental factors, making it suitable for use in

sensitive environments such as commercial kitchens, laboratories, hospitals, swimming pools, and coastal areas, as well as high-end residential and commercial projects.

The polished stainless steel finish also provides an elegant appearance that blends with modern and classic interior designs alike..

The diffuser is primarily used for Supply Air applications, and can be easily installed in gypsum ceilings or false ceilings,

with the possibility of connecting it to a Plenum Box and adding a Volume Control Damper (VCD) to adjust the airflow and achieve precise system balancing

according to project requirements..

Key Features:

·      Design: Four-way air distribution..

·      Finish: Polished stainless steel.

·      Color: Natural stainless steel.

·      Homogeneous four-way air distribution without noise..

·      Stable operational performance with low noise levels.

·      Suitable for installation in gypsum and false ceilings..

·      Available in gold and silver colors.

·      Easy installation, removal, cleaning, and maintenance..

·      Easy to clean and wash.

Technical Details:





Technical Table:

4 WAY SQUARE DIFFUSER
Material: Aluminum Layers | Low Noise



📝 Consultant Approval Notes:

·      The above DESIGN DATA  values are for use in project schedules.

·      Final values depend on  STATIC PRESSURE +PLENUM BOX +VCD

·      A datasheet for all sizes and types is available for download.

Product Sizes:



Uses:

·      Hospitals

·      Restaurants

·      Hospitality buildings and hotels

·      Malls and shops

·      Cafes

·      Retail stores



Other options:

·       PLENUM BOX addition can be requested

·      A VOLUME CONTROL DAMPER can be requested

·      Multiple and different sizes can be requested

·      Special prices are available for large projects

·      Special prices are available for commercial companies and shops
