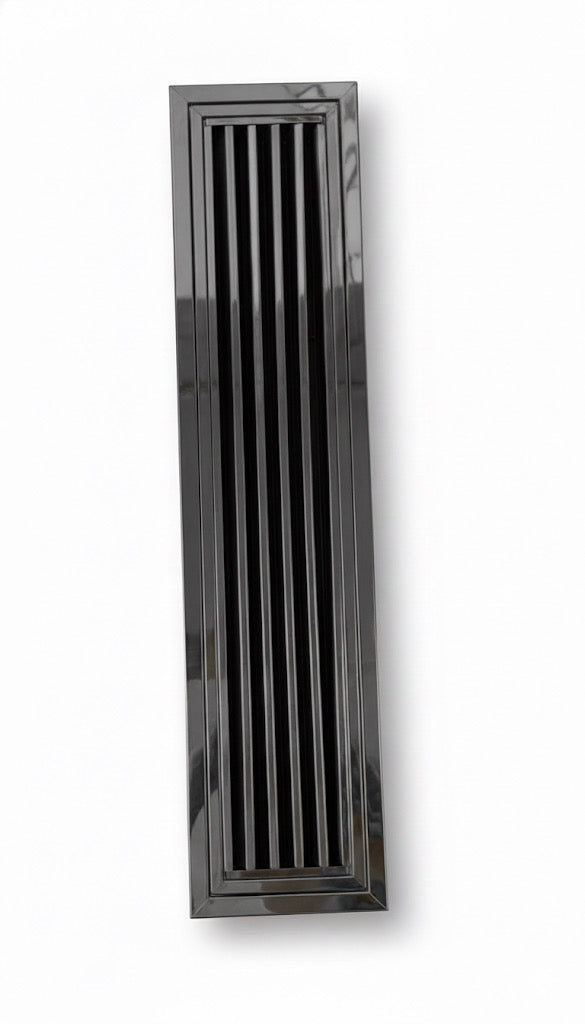

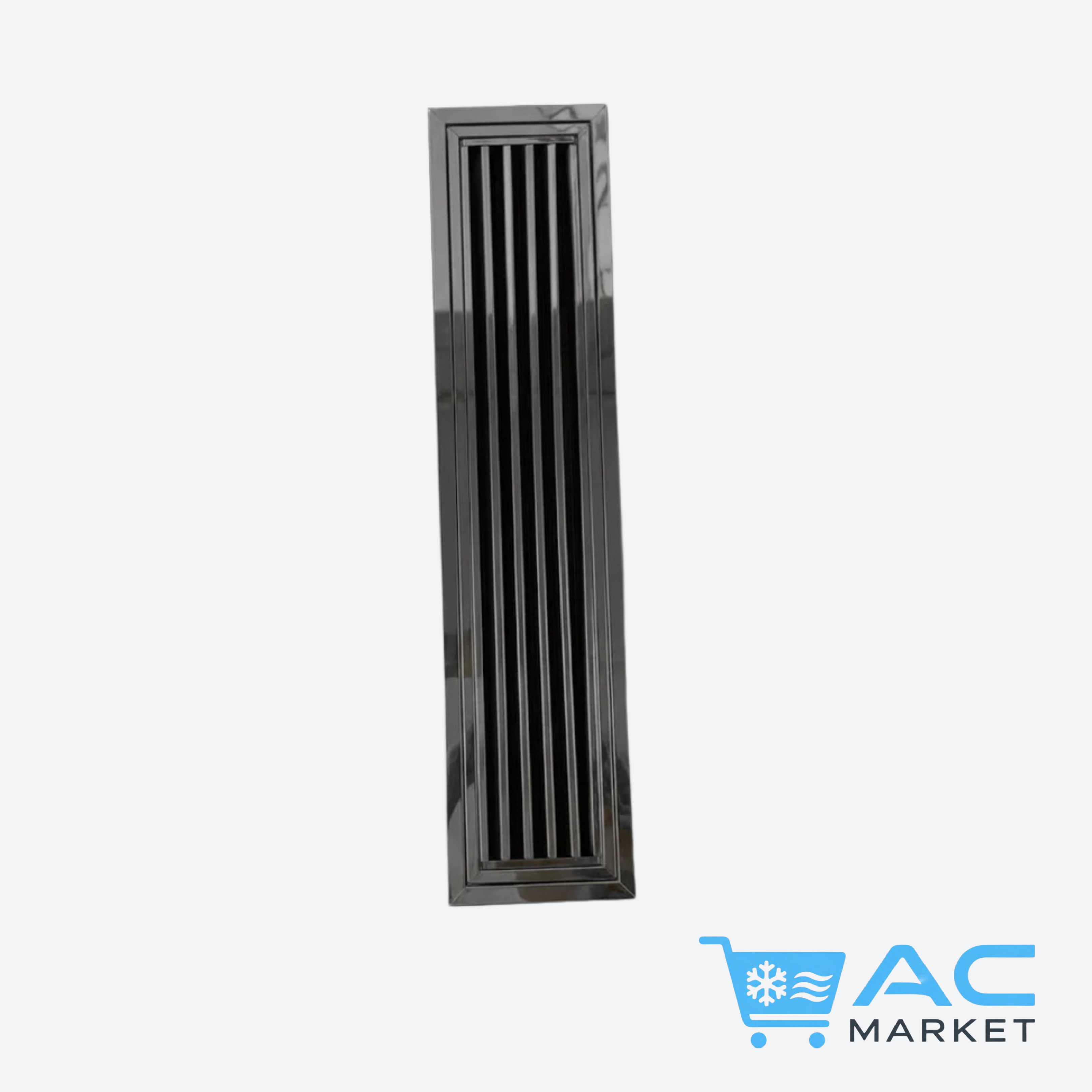

rectangular linear grilles

Product Overview:

General Definition – Square Ceiling Diffuser

The stainless steel square ceiling diffuser is an advanced air distribution solution for HVAC systems,

 combining balanced aerodynamic performance with a luxurious architectural appearance, making it an ideal choice for projects that demand a high level

of quality and durability alongside aesthetic appeal.

The diffuser's design features multiple concentric cones that allow for gradual and balanced air discharge in four directions,

which helps improve air distribution within spaces.

The diffuser is manufactured from high-quality stainless steel, offering excellent resistance to rust, moisture, and environmental factors, making it suitable for use in

sensitive environments such as commercial kitchens, laboratories, hospitals, swimming pools, and coastal areas, as well as upscale residential and commercial projects.

The polished stainless steel finish provides an elegant appearance that harmonizes with both modern and classic interior designs.

The diffuser is primarily used for Supply Air applications, and can be easily installed on gypsum or suspended ceilings,

with the option of connecting it to a Plenum Box and adding a Volume Control Damper (VCD) to adjust airflow and achieve precise system balancing

according to project requirements.

Key Features:

·      Design: Four-way air distribution..

·      Finish: Polished Stainless Steel

·      Color: Natural Stainless Steel

·      Uniform, silent four-way air distribution..

·      Stable operational performance with low noise levels.

·      Suitable for installation in gypsum and suspended ceilings..

·      Available in gold and silver.

·      Easy to install, remove, clean, and maintain..

·      Washable and cleanable.

Technical Details:





Technical Table:

4 WAY SQUARE DIFFUSER
Material: Aluminum Layers | Low Noise



📝 Consultant Approval Notes:

·      The above DESIGN DATA  values are for use in project schedules.

·      Final values depend on  STATIC PRESSURE + PLENUM BOX + VCD

·      A datasheet for all sizes and types is available for download.

Product Sizes:



Uses:

·      Hospitals

·      Restaurants

·      Hospitality buildings and hotels

·      Malls and shops

·      Cafes

·      Shops



Other options:

·       You can request the addition of a PLENUM BOX

·      You can request the addition of a VOLUME CONTROL DAMPER

·      Multiple and different sizes are available

·      Special prices are available for large projects

·      Special prices are available for commercial companies and shops
