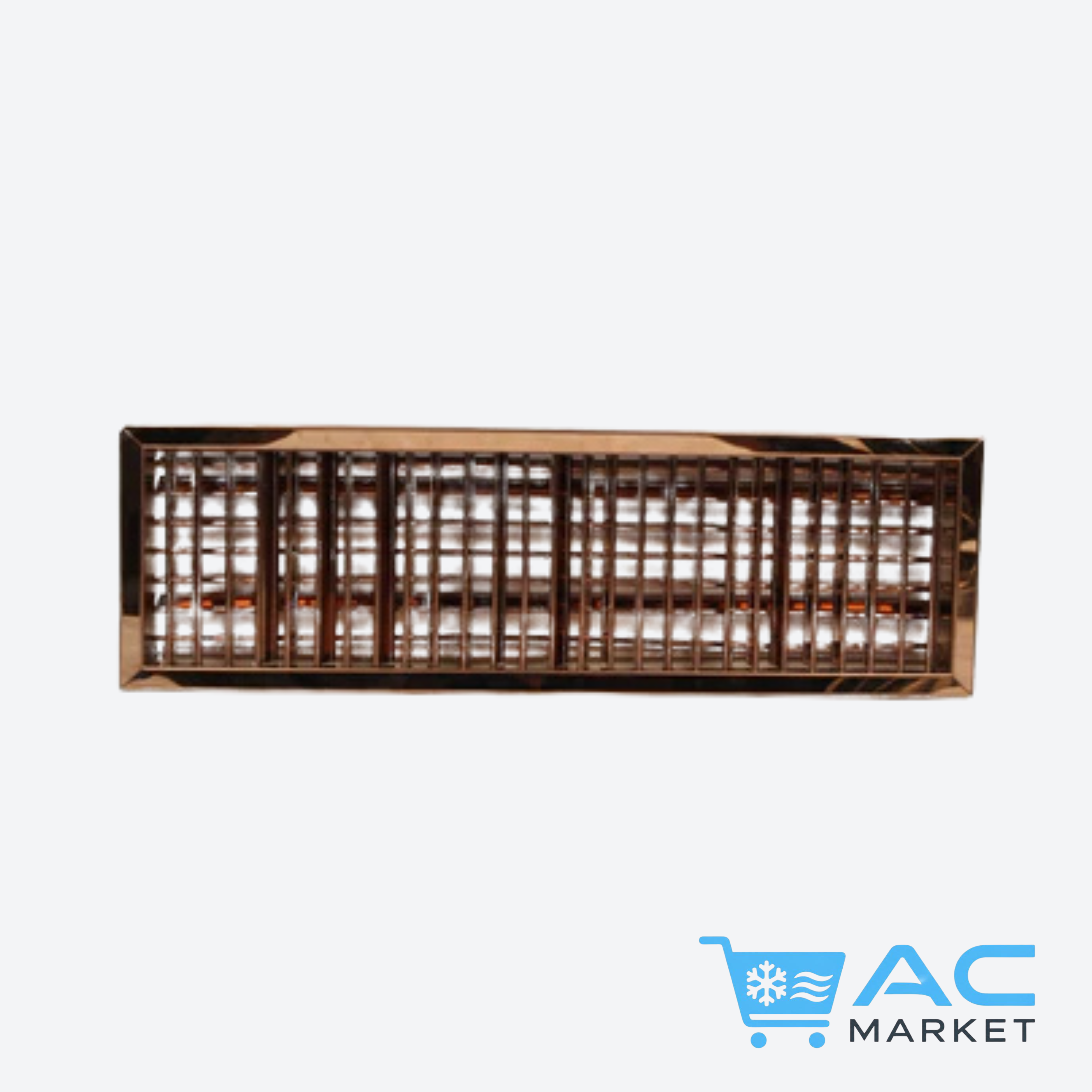

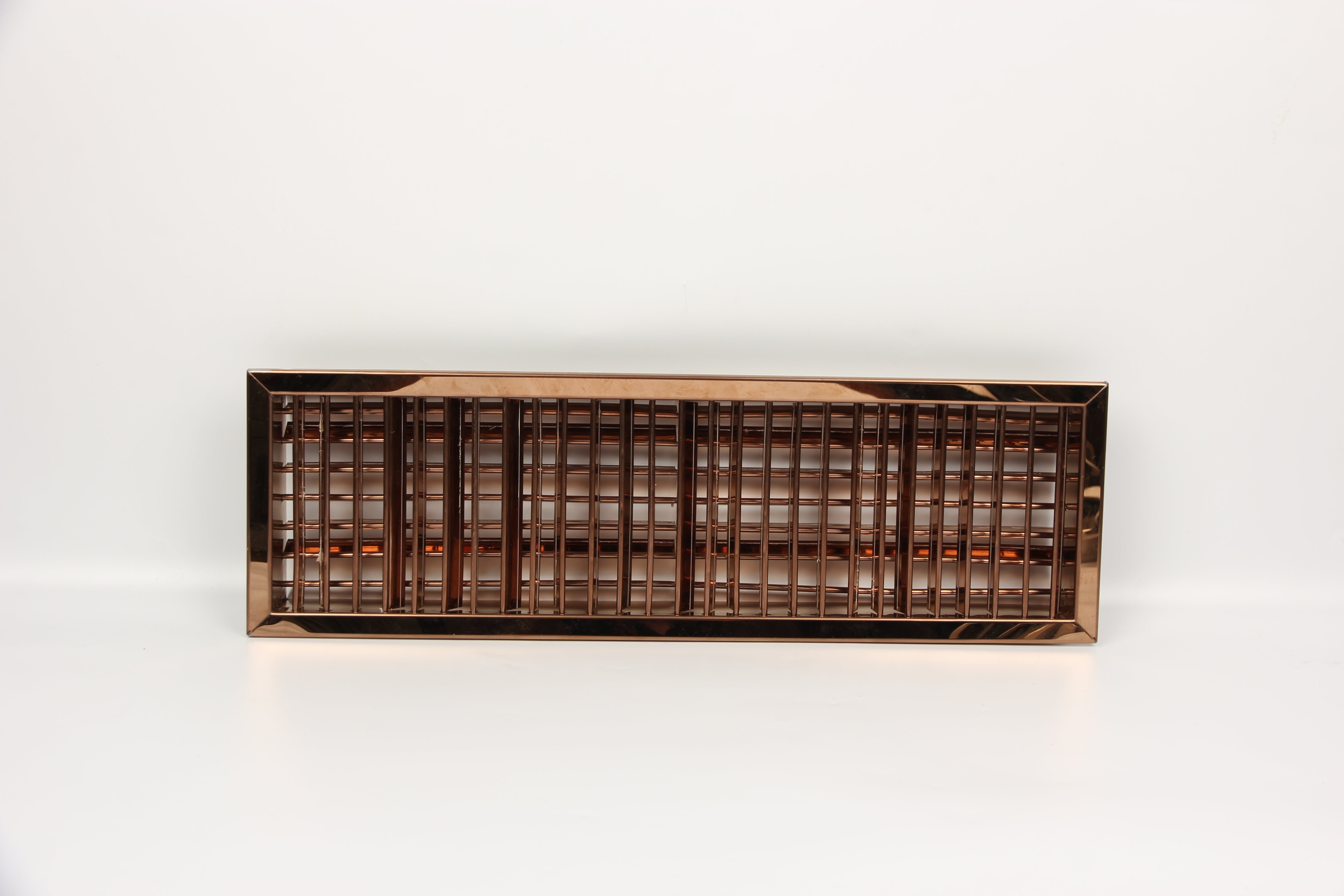

rectangular linear grilles

Product Overview:

General Definition – Square Ceiling Diffuser (Square Ceiling Diffuser)

The stainless steel square ceiling diffuser is an advanced air distribution solution for air conditioning and ventilation systems (HVAC),

 combining balanced airflow performance with a luxurious architectural appearance, making it an ideal choice for projects that demand a high level

of quality and durability alongside aesthetic appeal.

The diffuser's design relies on multiple stepped cones (Multi-Cone Design) that allow air to exit gradually and evenly in four directions

, which helps improve air distribution within spaces.

The diffuser is manufactured from high-quality stainless steel, which offers excellent resistance to rust, moisture, and environmental factors, making it suitable for use in

sensitive environments such as commercial kitchens, laboratories, hospitals, swimming pools, and coastal areas, as well as high-end residential and commercial projects.

The polished finish of the stainless steel also gives it an elegant appearance that complements both modern and classic interior designs.

The diffuser is primarily used for Supply Air applications (Supply Air), and can be easily installed on plasterboard ceilings or false ceilings

, with the option to connect it to a Plenum Box (Plenum Box) and add a Volume Control Damper (VCD) to adjust the airflow and achieve precise system balancing

according to project requirements.

Key Features:

·      Design: Four-way air distribution.

·      Finish: Polished stainless steel.

·      Color: Natural stainless.

·      Homogeneous four-way air distribution without noise.

·      Stable operational performance with low noise levels.

·      Suitable for installation in plasterboard and false ceilings.

·      Available in gold and silver colors.

·      Easy to install, remove, clean, and maintain.

·      Washable.

Technical Details:





Technical Table:

4 WAY SQUARE DIFFUSER
Material: Aluminum Layers | Low Noise



📝 Consultant Approval Notes:

·      The values above are DESIGN DATA  to be used in project schedules.

·      Final values depend on  STATIC PRESSURE +PLENUM BOX +VCD

·      A datasheet for all sizes and types is available for download.

Product Sizes:



Uses:

·      Hospitals

·      Restaurants

·      Hospitality buildings and hotels

·      Malls and retail stores

·      Cafes

·      Retail stores



Other options:

·       PLENUM BOX addition can be requested

·      A VOLUME CONTROL DAMPER can be requested

·      Multiple and different sizes can be requested

·      Special prices are available for large projects

·      Special prices are available for commercial companies and retail stores
