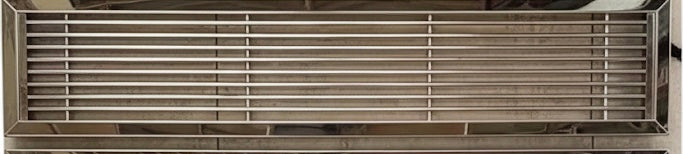

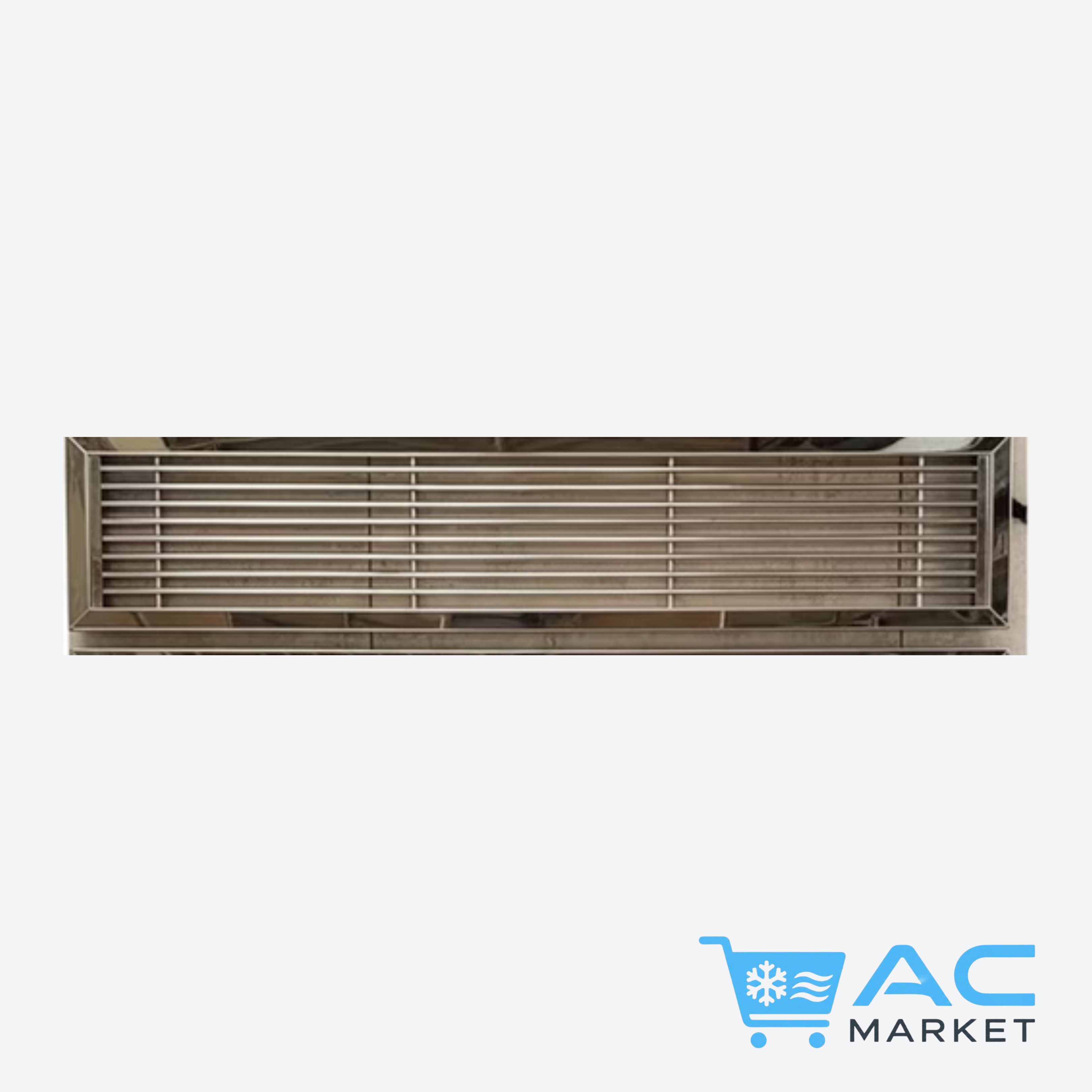

rectangular linear grilles

Product Overview:

General Definition – Square Ceiling Diffuser

The stainless steel square ceiling diffuser is an advanced air distribution solution for air conditioning and ventilation systems (HVAC),

 combining balanced airflow performance with a luxurious architectural appearance, making it an ideal choice for projects that demand a high level

of quality and durability alongside aesthetic appeal.

The diffuser's design is based on multiple stepped cones (Multi-Cone Design) that allow for gradual and balanced air discharge in four directions

, which helps improve air diffusion within spaces.

The diffuser is manufactured from high-quality stainless steel, characterized by excellent resistance to rust, moisture, and environmental factors, making it suitable for use in

sensitive environments such as commercial kitchens, laboratories, hospitals, swimming pools, and coastal areas, as well as high-end residential and commercial projects.

The polished finish of the stainless steel also gives it an elegant appearance that blends with modern and classical interior designs alike.

The diffuser is primarily used for Supply Air applications, and can be easily installed on plasterboard ceilings or false ceilings

, with the possibility of connecting it to a Plenum Box and adding a Volume Control Damper (VCD) to adjust the airflow and achieve precise system balancing

according to project requirements.

Key Features:

·      Design: Four-way airflow distribution.

·      Finish: Polished stainless steel

·      Color: Natural stainless steel

·      Homogeneous four-way air distribution without noise.

·      Stable operational performance with low noise levels

·      Suitable for installation in plasterboard and suspended ceilings.

·      Available in gold and silver colors.

·      Easy to install, remove, clean, and maintain.

·      Cleanable and washable.

Technical Details:





Technical Table:

4 WAY SQUARE DIFFUSER
Material: Aluminum Layers | Low Noise



📝 Consultant Approval Notes:

·      The above DESIGN DATA  values are for use in project schedules.

·      Final values depend on  STATIC PRESSURE +PLENUM BOX +VCD

·      A datasheet for all sizes and types is available for download.

Product Sizes:



Uses:

·      Hospitals

·      Restaurants

·      Hospitality buildings and hotels

·      Malls and shops

·      Cafes

·      Commercial shops



Other options:

·       A PLENUM BOX  can be added

·      A VOLUME CONTROL DAMPER can be added

·      Multiple and different sizes can be requested

·      Special prices are available for large projects

·      Special prices are available for commercial companies and shops
